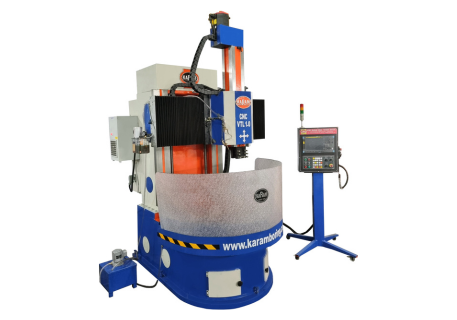

CNC Vertical Turning Lathes

Vertical turning has changed the face of modern manufacturing. When heavy-duty components need precise machining, CNC Vertical Turning Lathes (VTLs) step in as the go-to solution. They combine the force of vertical orientation with the intelligence of computer numerical control. Let’s dive into what makes VTL work special and why KARAM is your most trusted partner for CNC lathe jobs.

MODEL	CNC VTL GN 800	CNC VTL GN 1.0	CNC VTL GN 1.2	CNC VTL GN 1.5	CNC VTL GN 2.0
TABLE DIAMETER (MANUAL CHUCK)	800 MM	1000 MM	1200 MM	1500 MM	2000 MM
MAXIMUM TURNING DIAMETER	1000 MM	1200 MM	1400 MM	1800 MM	2200 MM
MAXIMUM WORKING HEIGHT UNDER CROSS RAIL	700 MM	1000 MM	1200 MM	1400 MM	1500 MM
MAXIMUM PERMISSIBLE WEIGHT OF WORKPIECE	1500 KGS	3000 KGS	4000 KGS	5000 KGS	7000 KGS
TABLE SPEED (VARIABLE)	10 ~ 250 RPM	10 ~ 250 RPM	10 ~ 200 RPM	10 ~ 200 RPM	10 ~ 150 RPM
VERTICAL RAM TRAVEL (Z-AXIS)	500 MM	800 MM	900 MM	1000 MM	1200 MM
HORIZONTAL RAM TRAVEL (X-AXIS)	600 MM	700 MM	800 MM	950 MM	1250 MM
SPINDLE MOTOR - SERVO	AC 11/15 KW	AC 22/37 KW	AC 37/45 KW	AC 37/45 KW	AC 45/55 KW
Z-AXIS FEED MOTOR - SERVO WITH BRAKE	1.5 KW	2.2 KW	2.2 KW	3 KW	3 KW
X-AXIS FEED MOTOR - SERVO	1.5 KW	2.2 KW	2.2 KW	3 KW	3 KW
X-AXIS RAPID RATE	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN
Y-AXIS RAPID RATE	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN	3000 MM/MIN
CNC CONTROLLER	SIEMENS/FANUC	SIEMENS/FANUC	SIEMENS/FANUC	SIEMENS/FANUC	SIEMENS/FANUC

STANDARD ACCESSORIES

Single Ram Head on Cross Rail
Automatic Lubrication System
Table with Manual 4-Jaw Chuck
Suitable Steel Telescopic / Bellow Covers
LED Work Light
Warning Light (Red/Yellow/Green)
Service Tool Box & Tool Kit
Turcite-B Coating under all slides for the Friction Less movements
Operational & Maintenance Manual
Levelling Bolts & Seat Pads

OPTIONAL ACCESSORIES

Manual Turret Head on Main RAM Head
Automatic Tool Changer
Multi-Purpose Milling & Drilling Head on Cross Rail (1200 & 1500 Models only)
3 Axes Digital Readout System

SALIENT FEATURES

Extra Heavy Duty Graded Cast Iron Structure
Rotary Table mounted on Cross Roller Bearings & Rotary Encoder
CNC Controller with HMI & MPG Wheel
Manual Table Clamping Jaws
Precision X & Z Axis Travels with Precision Ball Screw & Nut
Reputed Electrical Accessories & Switchgears

What is VTL Work and Why Does It Matter?

VTL (Vertical Turning Lathe) work refers to a process where a workpiece is mounted vertically, and a cutting tool shapes it from the side. Unlike horizontal lathes, which spin parts like a rolling pin, VTLs position the part like a standing disc.

This setup allows easy handling of large, heavy, or odd-shaped workpieces—think aerospace components, turbine wheels, or industrial bearings. VTLs make it easier to achieve superior balance and precision, especially on parts that are wide in diameter but not very long.

Exploring the Power of CNC VTL Capabilities

At KARAM, we specialize in CNC Vertical Turning Lathe services that push the limits of accuracy and efficiency.

Key Capabilities Include:

Handling Large Components: Our VTLs can manage parts up to several meters in diameter.
Precision Finishing: With computer control, we achieve tolerances as tight as ±0.01 mm.
Multitasking Machining: Boring, grooving, and even drilling operations can be performed in one setup.
High Material Compatibility: From hardened steel to exotic alloys, CNC VTLs work seamlessly across different materials.

Whether it’s a one-off job or a high-volume production run, CNC VTLs ensure that every piece comes out exactly the way it should.

Why KARAM is Your Trusted CNC Machining Partner

When it comes to CNC Vertical Turning Lathe machining, KARAM stands out for more than just technology.

Here’s what makes us a preferred partner:

Decades of Experience: Our seasoned machinists bring both traditional know-how and advanced CNC training.
Cutting-Edge Equipment: We invest in state-of-the-art VTL machines for complex and heavy-duty tasks.
Customized Solutions: Every project is unique. We tailor our machining process to meet your exact specifications.
Quick Turnarounds: We meet deadlines without compromising on quality.
Rigorous Quality Checks: Every part passes through stringent quality control measures.

When you choose KARAM, you choose performance, precision, and peace of mind.

Key Components That Make CNC Vertical Lathes Exceptional

To truly appreciate the power of CNC VTLs, let’s look at the key components that make up these machines:

1. Rotary Table

The heavy-duty table holds and spins the workpiece. It’s designed to support extremely large weights and maintain perfect balance.

2. Tool Turret

This rotating turret holds multiple cutting tools and switches them out automatically during operations.

3. CNC Control Panel

The brain of the machine. This panel controls every movement, tool change, and cut based on a programmed set of instructions.

4. Vertical Ram

The ram holds the cutting tool and moves vertically to engage the material. Its precision is vital for consistent quality.

5. Support Columns

Sturdy columns provide stability, especially when dealing with vibrations from tough materials.

Each component is carefully engineered to work together, ensuring top-notch performance and long-term durability.

Top Benefits of CNC Vertical Turning You Should Know

So, what makes CNC Vertical Turning Lathe services stand out in the machining world? Here's a breakdown of the top benefits:

Advantage	Description
Precision	Achieve micron-level accuracy on complex parts.
Stability	Vertical setup gives better support for large and heavy components.
Efficiency	Multi-process operations save time and reduce labor costs.
Flexibility	Capable of handling a wide variety of part sizes and materials.
Repeatability	CNC programming ensures identical parts in high-volume runs.

So, what makes CNC Vertical Turning Lathe services stand out in the machining world? Here's a breakdown of the top benefits:

Frequently Asked Questions

Q1: What is the main use of a CNC Vertical Turning Lathe?

A: It’s mainly used to machine heavy, large-diameter components with high precision, especially in industries that require tight tolerances and durable materials.

Q2: How is a CNC VTL different from a horizontal lathe?

A: A VTL holds the workpiece vertically, which provides better support and is ideal for heavy parts. Horizontal lathes are better suited for long, slender parts.

Q3: What materials can be machined with CNC Vertical Turning Lathes?

A: They can handle a range of materials including stainless steel, aluminum, titanium, cast iron, and various alloys.

Q4: Is CNC vertical turning suitable for small batches?

A: Yes, CNC programming allows easy setup for both single-part machining and large production runs.

Q5: Why choose KARAM for CNC VTL services?

A: KARAM offers high-precision machining, expert craftsmanship, and tailored services backed by advanced CNC technology.

Whether you’re in aerospace, power generation, or industrial manufacturing, the CNC Vertical Turning Lathe is a must-have tool for high-precision, large-scale machining. With KARAM as your trusted partner, you can expect the perfect blend of experience, technology, and customer satisfaction.

Looking for reliable CNC VTL services? Let KARAM engineer your success, one perfect cut at a time.
